User Story #1192
closedGeneric Soft Jaws: Toolpath
Description
Responsible: Nikola
Accountable: @Ben Harbarenko
Consulted: Elko Staff (Nick), @Ben Harbarenko
Informed: Mechanical Team
What:
Generate a tool path in fusion 360 for a soft jaw machined from 2x1” aluminum bar stock. Refer to existing soft jaws as reference for dimensions and hole position. Consult Nick if you have questions about any particulars. Special features for use in our particular application will be added in a separate operation once the soft jaws can be mounted in the vise. This is just a generic soft jaw that is essentially the same as the factory jaws installed in the vise but we are allowed to customize these ones.
This is a rough sketch. It is up to you to determine the appropriate dimensions:
Why:
Soft jaws will be required to manufacture Icarus rails
Files
| clipboard-202402010950-iow90.png (91.6 KB) clipboard-202402010950-iow90.png | |||
| Soft Jaws AlbertaSAT v6.f3d (186 KB) Soft Jaws AlbertaSAT v6.f3d | |||

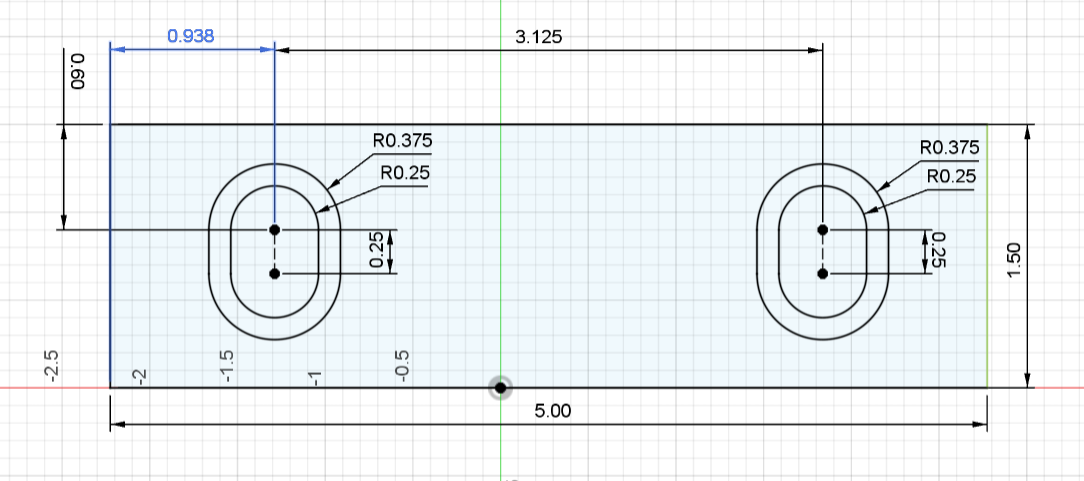

| clipboard-202402131656-ax2wo.png (135 KB) clipboard-202402131656-ax2wo.png | Here is the sketch of the softjaw dimensions |
Updated by Ben Harbarenko about 1 year ago
- Due date changed from 02/06/2024 to 02/13/2024
Updated by Ben Harbarenko about 1 year ago
- Status changed from New to In Progress
Updated by Nikola Karisik about 1 year ago
- File Soft Jaws AlbertaSAT v6.f3d Soft Jaws AlbertaSAT v6.f3d added
- File clipboard-202402131656-ax2wo.png clipboard-202402131656-ax2wo.png added
Updated by Nikola Karisik about 1 year ago
Ben Harbarenko wrote:
Responsible: @Nikola
Accountable: @Ben Harbarenko
Consulted: Elko Staff (Nick), @Ben Harbarenko
Informed: Mechanical Team
What:
Generate a tool path in fusion 360 for a soft jaw machined from 2x1” aluminum bar stock. Refer to existing soft jaws as reference for dimensions and hole position. Consult Nick if you have questions about any particulars. Special features for use in our particular application will be added in a separate operation once the soft jaws can be mounted in the vise. This is just a generic soft jaw that is essentially the same as the factory jaws installed in the vise but we are allowed to customize these ones.
This is a rough sketch. It is up to you to determine the appropriate dimensions:
Why:
Soft jaws will be required to manufacture Icarus rails
Updated by Ben Harbarenko about 1 year ago
- Status changed from In Progress to Feedback
Updated by Ben Harbarenko about 1 year ago
- Status changed from Feedback to Closed
